5 Core Pro Wireless Handheld Microphone Transmitter with Vocal Microphone Capsule for use with Wireless Systems Rechargeable Digital WM 1001

WIRELESS MICROPHONE - 1001

Product features

• Digital audio transmission technology
• Unique digital ID code pilot technology, ID code 32bit, completely solve the
• same frequency cross-talk phenomenon
• Ultra-low audio latency.
• Audio sampling mode: 48KHz.
• Frequency range: 80Hz-18KHz
• Receive automatic scan
• Theoretical transmission distance of open environment: 25-80 meters

Basic operating instructions:

Microphone:

1. Unscrew the battery compartment and insert 2 AA batteries, paying attention that the positive and negative polarity cannot be reversed.
2. Short press the microphone power switch to tum on mic, the display will tums bright, showing the working frequency, channel and battery real-time power; long press the switch to turn off mic.

Receiver:

1. Open the battery compartment, insert a lithium battery, and note that the positive and negative
polarities cannot be reversed
2. Turn the receiver switch key to the "ON" position, when the power indicator turns green the receiver will work normally
3. The receiver signal indicator shows green, indicating that the receiver has successfully connected to the microphone of the CHA channel, and the microphone can be used
4. When the receiver's battery under low power status the green light will slightly dim5. When charging, the power indicator light will turns and keep red after fully charged the red light will turn off

Specification of hand-held microphone -

• Capsule: Dynamic
• Polar pattern : Cardioid
• Radio frequency bandwidth : 60 MHZ
• Transmission power : 20mwW
• Frequency response : 80Hz-18KHz
• Dynamic range : 96 db
• Harmonic radiation : <-50DBC
• The distortion degree of : <0.5%
• The power supply mode : 1.5AA alkaline batteries

Receiver specification -

• RF bandwidth : 60MH
• Frequency points : 2 x 50(1)
• Signal-to-noise ratio : >105dB
• Receiving sensitivity : 10-20dBuv
• Frequency response : 80Hz-18KHz
• Distortion : <0.5%
• Dynamic Range : 96dB
• Receive delay : 2.5ms
• Power supply : One 18650 lithium battery (3.7V)

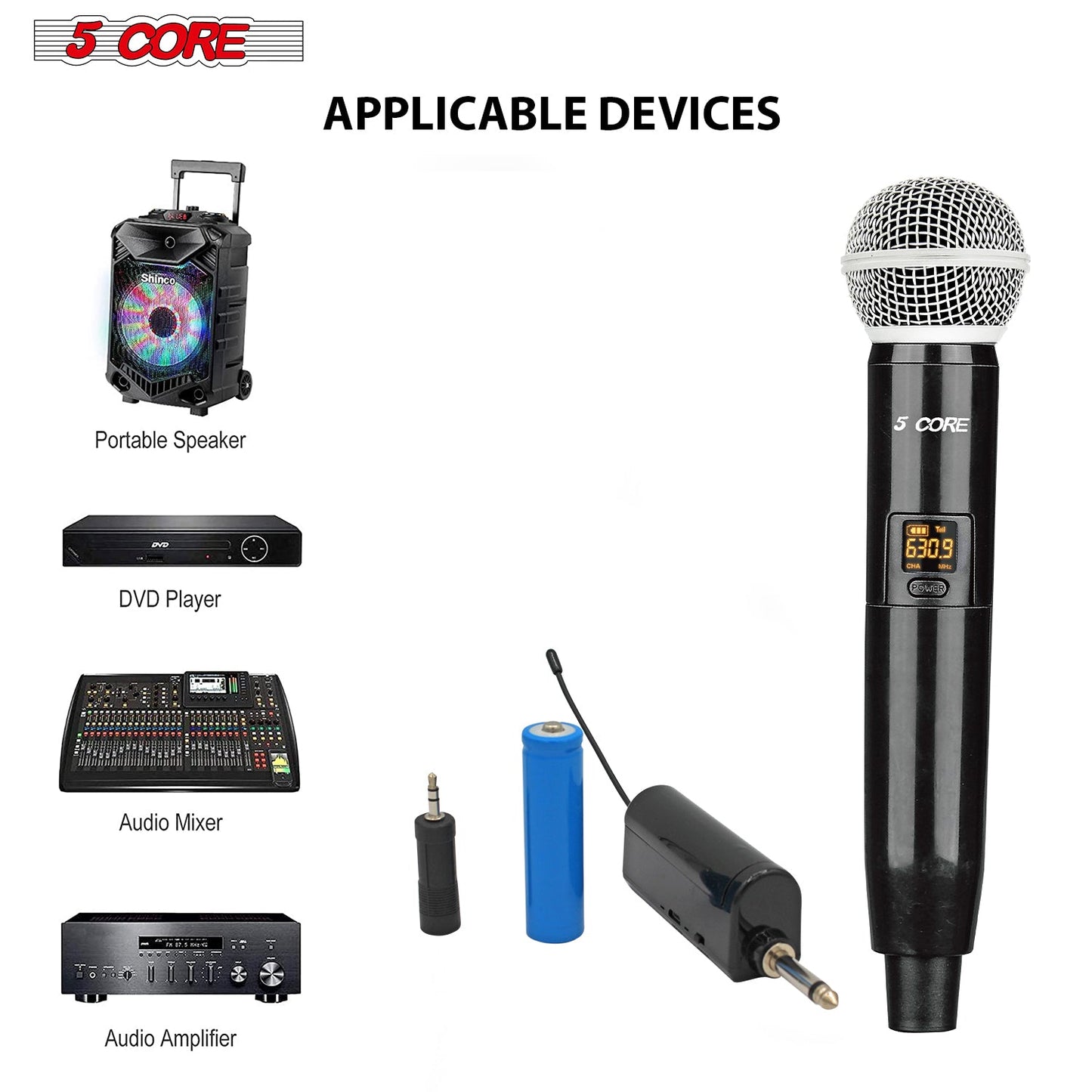

Package include: 1x Wireless Mic + Rechargeable battery + Transmitter + Adapter
